A unique, dispensable thermal solution

• Operating temperature range: -40°C to 125°C
• Minimum bondline thickness: 20µm
• Volume resistivity: 1x 10¹¹ Ω-cm
• Density: 2.63 g/cc 
• Available in cans, pails, cartridges and syringes
• Shelf life of six months when stored at 15°C to 30°C, at 50% RH 

Achieve impressive thermal resistance and reliability

When high-powered components are dependent on reliable thermal performance, Laird™ Tputty™ 910 is an ideal gap filler solution providing the lowest thermal resistance and highest thermal reliability available. A dispensable, soft solution, Tputty™ 910 minimizes stress on sensitive components. It also features low outgassing and a minimum bondline thickness as low as 180 µm.

Solve thermal challenges with a dispensable solution

• Operating temperature: -40°C to 180°C
• Minimum bondline thickness: 180µm
• Density: 3.2 g/cc
• Available in syringes, cartridges and 1 gal-pail
• Shelf life of six months
• Easy flow for high dispensing productivity

Improve indoor 5G device performance

• Temperature rating: -40°C to 100°C
• Lightweight for weight sensitive applications
• Ball drop impact: 5 kg*m2/s2 @2mm thickness
• Meets RoHS and REACH requirements

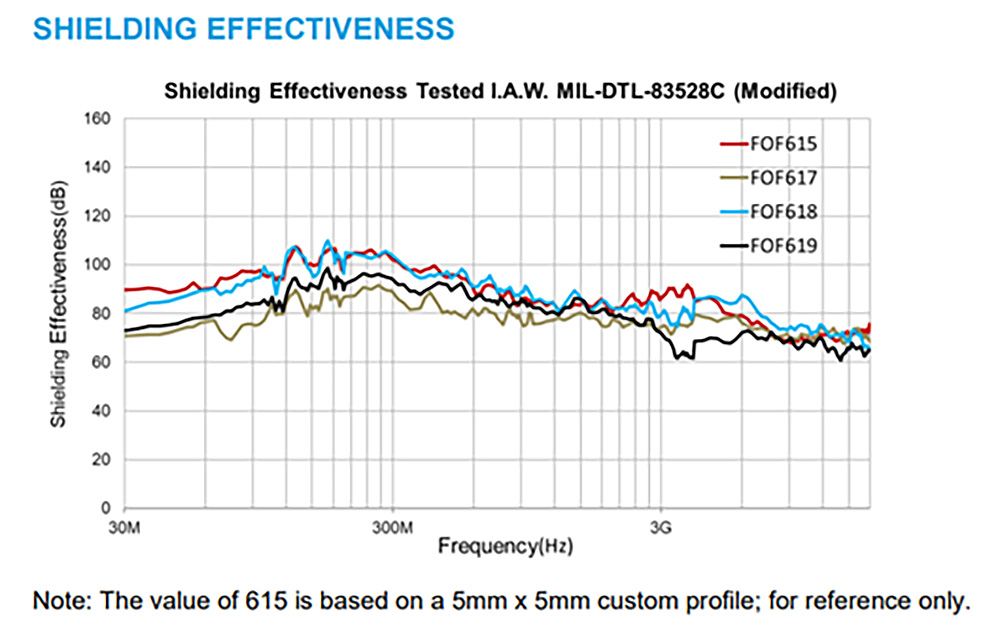

Select Compression Set Values, PSAs

Soft-core EcoTemp™ can be compressed 25% to 50% of its original height at its maximum operating temperature. Gaskets come in a variety of thickness options. The series can be supplied with either a non-conductive or electrically conductive pressure sensitive adhesive (PSA). EcoTemp™ can be ordered with an extended-release liner (ERL) on the adhesive. Other features and benefits include:

• Excellent z-axis conductivity providing thorough EMI shielding and grounding
• Operating temperature range -40°C to 125°C
• Wide selection range of compression set values
• Low compression set at elevated temperature
• RoHS compliant and halogen free per IEC-61249-2-21 standard
• UL94 V0 flame retardant grade

Typical Applications

• Servers and Cabinets
• Telecommunication Equipment
• Smart Devices
• Desktop/Laptop Computers
• Tablets/Smartphones
• Medical Equipment
• Automotive Components

High permeability in a thin solution

Placed on top of any noise-emitting circuitry, Nanocrystalline sheets provide a thin and space-saving solution to suppress EMI. The sheets are ideal for applications across industries, including data com, data infrastructure, industrial, consumer and wearable electronics, and health care.

• Standard Nanocrystalline layer thickness of 0.02mm, available in 2 layers, 3 layers and 5 layers
• Made by thin, high permeability Nanocrystalline with PET film and adhesive tape
• RoHS compliant
• Initial permeability of 1400 at 128KHz
• Operating temperature: -40°C to 125°C
• Custom size or thickness available upon request

Request Sample Order samples of products by selecting the “Request Sample” button at the top right of product page. If this does not appear, contact us for immediate help.

Request Quote Request a quotation on any product by visiting its product page and selecting the “Request Quote” button on the top right of the page. If this does not appear, contact us for immediate help.

Buy Now is Laird’s quick purchase tool powered by Octopart. Access it from the far-right side of part number tables seen near the bottom of many of our Product pages. Buy Now shows names and contact information for distributors stocking the item in many countries.

If you do not see the Buy Now column on these pages, contact us for immediate help.

Distributors enables you to search by distributor name in the search bar or see the complete listing available to you by selecting your country from the drop-down list.

See also Laird’s North American converters, manufacturer sales representative firms, and regional sales managers.

Defense Communications

Enhance communications in challenging environments ranging from desert battlefields to rough seas. Laird solutions improve the performance and reliability of communication technologies, including vehicle-to-vehicle, command-and-control, battlefield surveillance, and ground troop communications.

Communications systems can be subjected to extreme shock and vibration. We put precision metals solutions (from board-level shields to component housings) through rigorous testing to ensure reliable performance in the most rugged environments.Further, as heat loads increase within electronics enclosures, design engineers need heat-dissipating solutions enabling greater levels of thermal conductivity. Our thermal interface material innovations improve heat transfer and aid the reliable performance of military communications systems.

From microwave absorbers that operate with precision across a wide range of frequencies to thermal interface materials that transfer heat within communications equipment to fabric-based solutions that camouflage soldiers and equipment from infrared and radar threats, Laird creates novel materials that protect and enhance communications amid the harsh conditions of the battlefield – in the air, on land or on sea.

Naval

Corrosion-resistant EMI, thermal and structural products serve the complex needs of design engineers working on electronics aboard everything from surface ships to submarines to UAVs. For example:

• Laird uses corrosion-resistant alloys and particle coatings to develop microwave absorbers that perform reliably on naval ships amid harsh conditions at sea.

• Our enhancements in electrically conductive elastomers eliminate the risk of galvanic corrosion. Laird can manufacture elastomers - or engage with you in comolding - using highly resilient fluorosilicone and either nickel aluminum or passivated silver aluminum fillers, offering reliable mechanical, environmental, and electromagnetic shielding capabilities. 

• Using spray-on coatings, fabric coatings, or rigid closed-cell foam injections, Laird’s custom protective solutions allow design engineers to use foam absorbers in naval applications (e.g., shielding the outside of a ship from radar detection). These protective coatings block moisture and prevent flaking, resulting in a long-lasting, reliable foam absorber.  

Our rigorous measurement, testing, modeling and simulation capabilities help ensure innovation in responding to the evolving needs of design engineers working on naval device or system applications.
